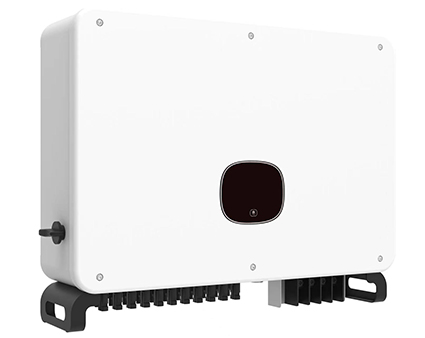

Three-phase High Voltage Hybrid Inverter

The new SPH series three-phase high-voltage energy storage inverter of Kunlun Energy storage supports multi-machine parallel operation, which is not only suitable for family residence, but also can be widely used in industry and commerce. The electricity cost can be reduced by peak-cutting and valley filling, and the high degree of autonomous energy dispatch can be realized. The series includes six power segments of 4/5/6/7/8/10kW, which can be perfectly matched with the battery series in the voltage range of 100 to 550V. The grid-connected end has 1.1 times AC continuous overload output, and the off-grid switching time is less than 10ms, which is very friendly to important household loads, supports DC arc protection, each phase is independent anti-countercurrent control, and AC and DC standard surge secondary protection escorts safe electricity consumption.

Product Advantages

Efficient Power Generation

Function Lead

System Flexibility

Realize Value

Model	KL4000TL3 BH-UP	KL5000TL3 BH-UP	KL6000TL 3 BH-UP	KL7000TL3 BH-UP	KL8000TL3 BH-UP	KL10000TL3 BH-UP
Photovoltaic Input
Maximum photovoltaic input power	6000w	7500W	9000w	10500W	12000W	15000W
MPPTQuantity	2
Rated Power	4000W	5000W	6000W	7000W	8000W	10000W
Rated Voltage (range)			230V/400V(	310~476V)
AC input
Operating Voltage Range	100~550V
Continuous Charge and Discharge Power	4000w	5000W	6000W	7000W	8000W	10000W
Maximum Output Power	4000W	5000W	6000W	7000W	8000W	10000W
Rated Voltage (range)	230V/400V
Routine Data
Dimensions (width/height/thickness)	505/453/198mm
Weight	30kg
